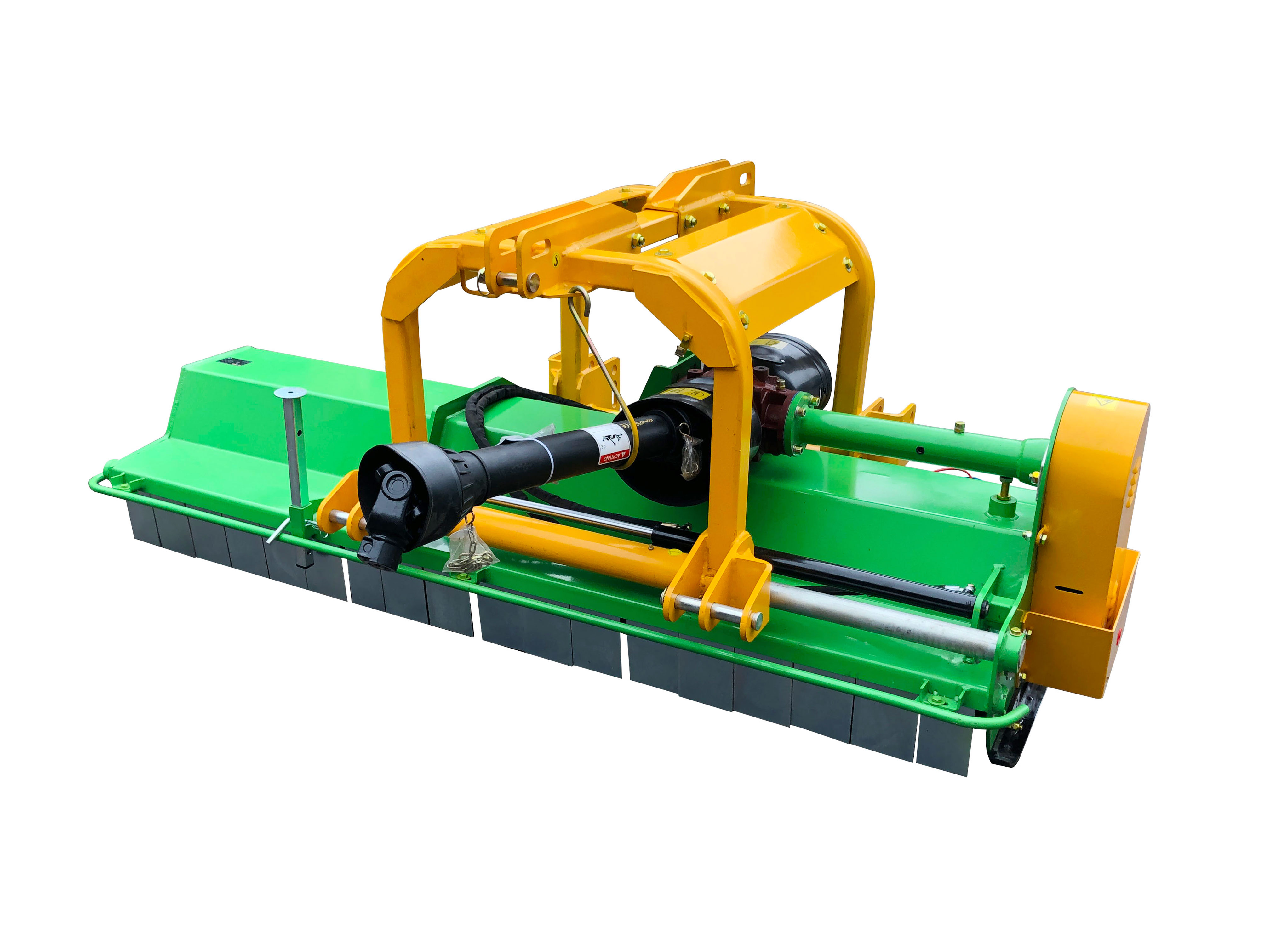

BCS-Series
spare parts for Bowell BCS-Series
You want to order parts from the diagram that are not listed below ? Just send an email to info@bowell-tractor.com and we will help you.
click to enlarge
| 4 - PTO cover | 49 - lower pulley |

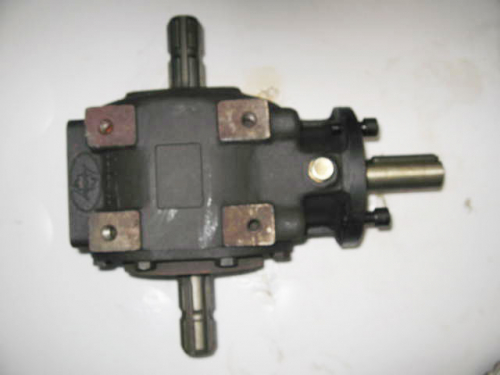

| 7 - Comer gear box for BCS | 50 - rotor left end bearing seat |
| 9 - key 10x35 | 51 - oil seal 40x85x12 |
| 10 - spindle collar | 52 - spherical ball bearing 2308 |
| 11 - air outlet bolt | 53 - oil seal 50x90x12 |
| 12 - oil plug, diameter3/8", length 19mm | 54 - circlip for hole Φ90 |
| 13 - drive shaft pipe | 55 - 1300gr forging hammer |
| 14 - drive shaft | 57 - rotor shaft for BCS140 |
| 17 - oil seal 40x80x10 | 57 - rotor shaft for BCS180 |
| 18 - drive shaft plate | 57 - rotor shaft for BCS200 |
| 25A - left side roller bracket | 57 - rotor shaft for BCS220 |
| 25B - right side roller bracket | 58 - rotor right end bearing seat |
| 29 - roller for BCS140 | 62 - lower hitch pin |
| 29 - roller for BCS180 | 63 - nylon bushing |
| 29 - roller for BCS200 | 65 - BCS hitch 1 |
| 29 - roller for BCS220 | 66 - grease nipple M10x1 |
| 33 - upper pulley | 74 - oil pipe 1, 1850mm Φ6 |
| 34 - power lock 40x80 | 74 - oil pipe 1, 2430mm Φ6 |
| 35 - belt BX 17x1270 | 76 - quick release coupling G1/2 |
| 36 - belt cover | 79 - cylinder |
| 39 - T plate | 83 - connection tube |
| 40 - mower left foot | 86 - tractor front hitch |
| 40 - mower right foot | 87 - hitch connection plate, > #606752 |
| 47 - protection plate,120mm width 180mm length | 88 - belt cover protection plate, > #606752 |
| 47 - protection plate,50mm width 180mm length | 89 - gear box bracket, > #606752 |
| 47 - protection plate,35mm width 180mm length | 90 - shaft tube gasket |
| 48 - grease nipple M8x1 | 91 - Φ40 circlip for shaft |
