spare parts for Bowell SM-Series
You want to order parts from the diagram that are not listed below ? Just send an email to info@bowell-tractor.com and we will help you.


Please click to enlarge !



1 - roller bracket, left + right 13 - spring
2 - inserted bearing with housing 14 - lower hitch bracket
3 - rear roller 15 - lower hitch pin
4 - safety bar 16 - 3 point hitch tube
7 - side rod 17 - bolt set lower + upper hitch
8 - front rod 19 - lock pin
9 - chain 21 - round cover
10 - wheel assy 23 - handle
11 - wheel rod 24 - grease nipple M8x1
12 - wheel bracket


1 - blade base 20 - plate
2 - blade 21 - plate
3 - ball bearing 22 - drive belt BX17x1930
4 - blade bearing seat 23 - arm
5 - bushing 24 - bearing seat
6 - rotor shaft 25 - plate
8 - pulley 1 26 - circlip for hole µ78
9 - hexagon thin nut M24 27 - bushing
10 - grease nipple M8x1 28 - round plate
11 - pulley 2 29 - round bar
12 - pulley 3 30 - round cover
13 - gear box base 31 - adapter
14 - gear box 33 - spring rod 1
15 - pto cover 34 - spring
16 - drive belt BX 17x2003 35 - spring rod 2
17 - plate 36 - wheel bracket
18 - µ60 circlip for shaft 37 - wheel
19 - deep groove ball bearing 38 - bearing seat

17x1930 drive belt
28,90 EUR
incl. 19% tax excl. Shipping costs
17x2003 drive belt
32,00 EUR
incl. 19% tax excl. Shipping costs
3 point hitch tube
83,00 EUR
incl. 19% tax excl. Shipping costs
adapter
adapter
2,20 EUR
incl. 19% tax excl. Shipping costs
arm
79,00 EUR
incl. 19% tax excl. Shipping costs
ball bearing
ball bearing
24,90 EUR
incl. 19% tax excl. Shipping costs
bearing seat
bearing seat
38,00 EUR
incl. 19% tax excl. Shipping costs
bearing seat
bearing seat
21,40 EUR
incl. 19% tax excl. Shipping costs
blade
blade
5,90 EUR
incl. 19% tax excl. Shipping costs
blade base
blade base
36,80 EUR
incl. 19% tax excl. Shipping costs
blade bearing seat
blade bearing seat
42,90 EUR
incl. 19% tax excl. Shipping costs
bolt set for lower and upper hitch
bolt set for lower and upper hitch
27,80 EUR
incl. 19% tax excl. Shipping costs
bushing
12,40 EUR
incl. 19% tax excl. Shipping costs
bushing
3,10 EUR
incl. 19% tax excl. Shipping costs
chain
chain
2,95 EUR
incl. 19% tax excl. Shipping costs
circlip 60mm for shaft
circlip 60mm for shaft
2,70 EUR
incl. 19% tax excl. Shipping costs

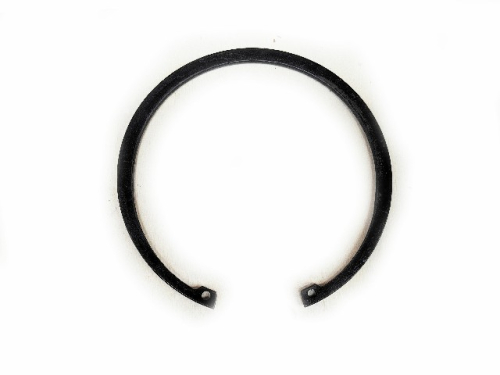

circlip 78mm
circlip 78mm
3,35 EUR
incl. 19% tax excl. Shipping costs
deep groove ball bearing
12,20 EUR
incl. 19% tax excl. Shipping costs
front rod
79,00 EUR
incl. 19% tax excl. Shipping costs
gear box
165,00 EUR
incl. 19% tax excl. Shipping costs
gear box base
27,60 EUR
incl. 19% tax excl. Shipping costs
grease nipple M8x1
grease nipple M8x1
1,35 EUR
incl. 19% tax excl. Shipping costs
handle
5,30 EUR
incl. 19% tax excl. Shipping costs
lock pin
8,25 EUR
incl. 19% tax excl. Shipping costs
lower hitch bracket
38,50 EUR
incl. 19% tax excl. Shipping costs
lower hitch pin
lower hitch pin
7,80 EUR
incl. 19% tax excl. Shipping costs
plate
1,90 EUR
incl. 19% tax excl. Shipping costs
plate
65,00 EUR
incl. 19% tax excl. Shipping costs
plate
48,00 EUR
incl. 19% tax excl. Shipping costs
plate
plate
19,60 EUR
incl. 19% tax excl. Shipping costs
PTO protection
PTO protection
19,90 EUR
incl. 19% tax excl. Shipping costs
pulley 1
pulley 1
28,30 EUR
incl. 19% tax excl. Shipping costs
1 to 32 (from a total of 55)
