Backhoe bucket with teeth for mini-excavators with MS-01 or MS-03 interface - width 30 to 90 cm
➤ Cutting edge and teeth made of Hardox 400
➤ Bucket body made of S355J2+N
➤ For mini excavators with MS-01 or MS-03 interface
➤ Working widths from 30-90 cm
Free delivery inside EU ✓
Product description

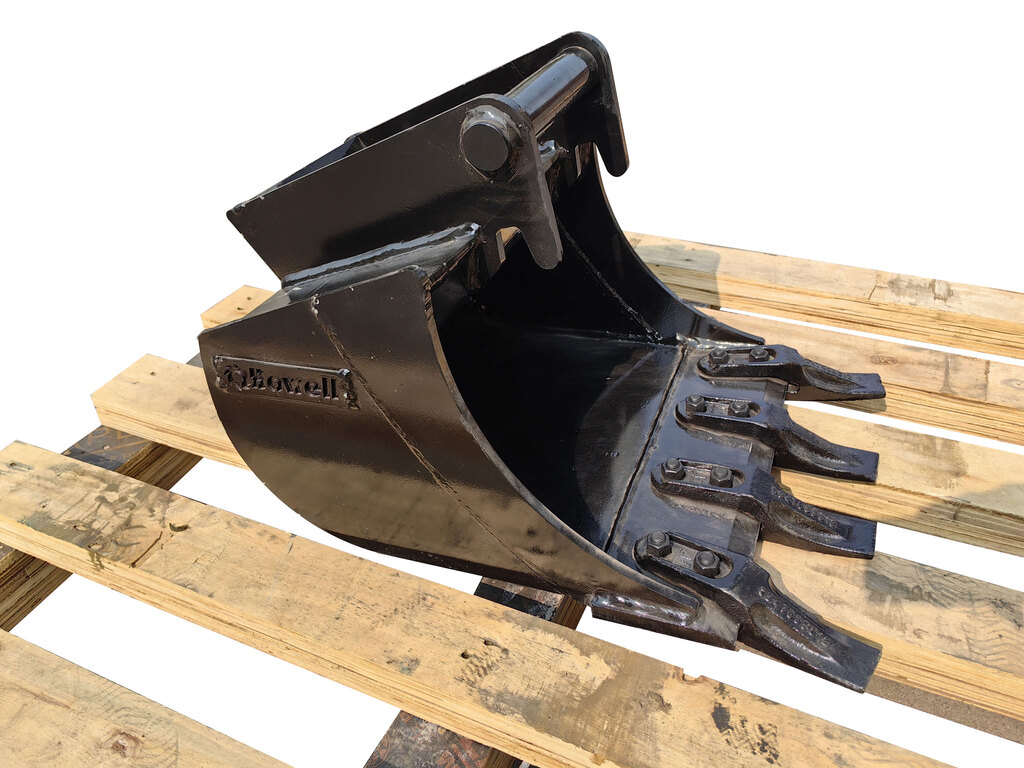

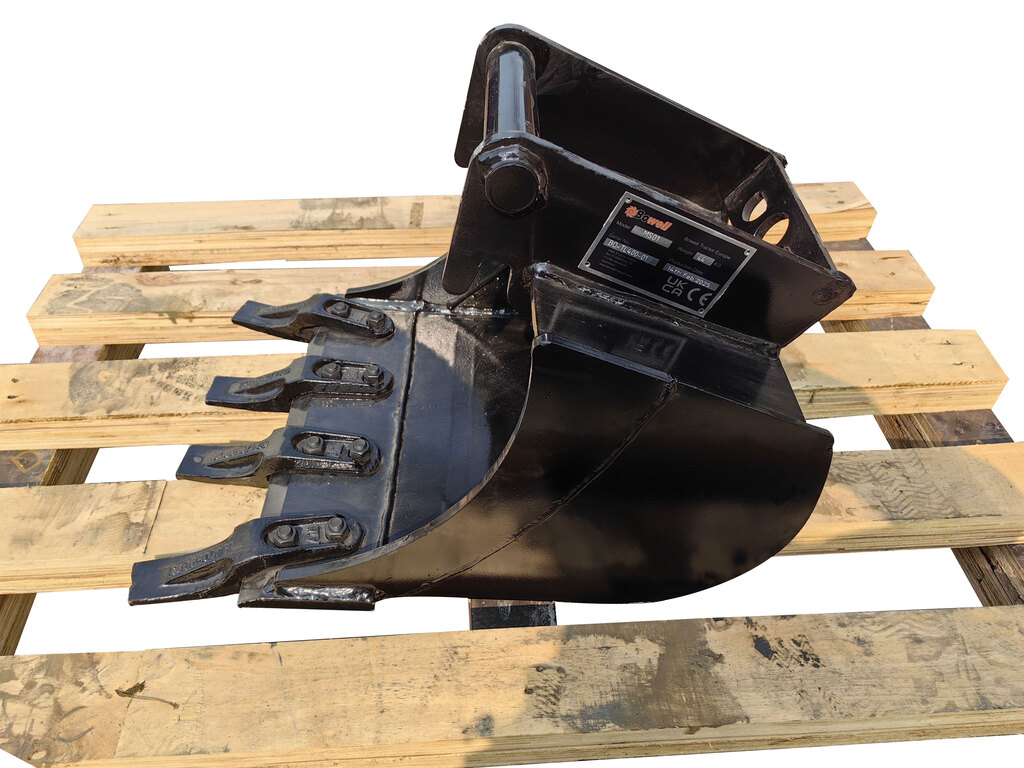

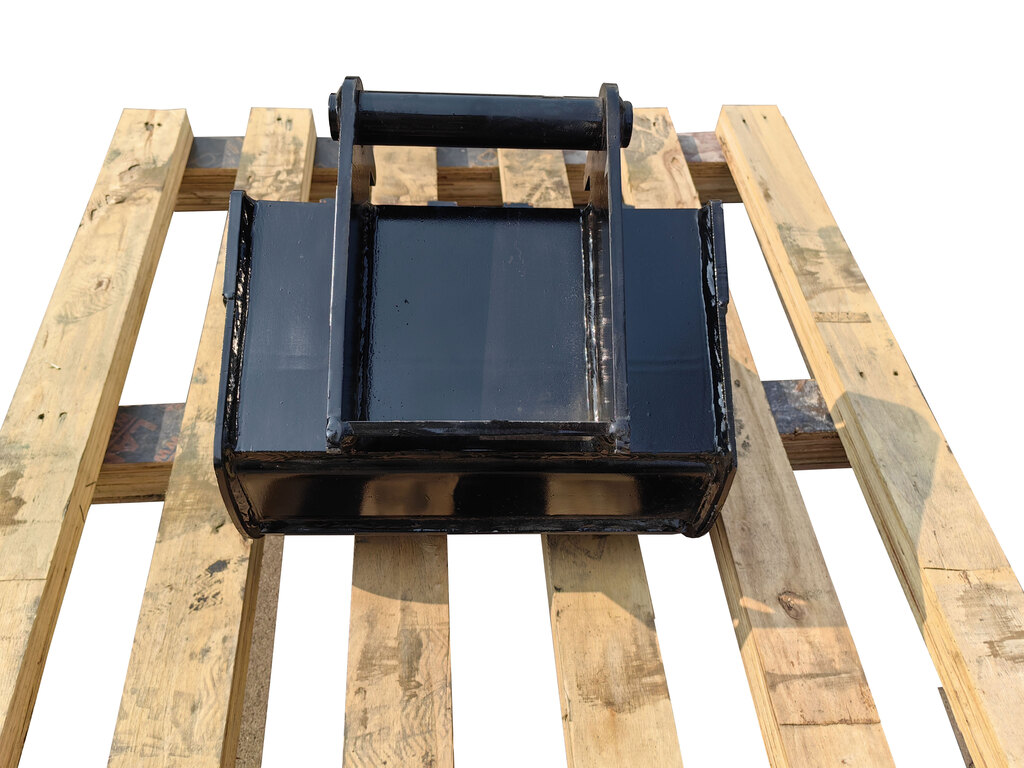

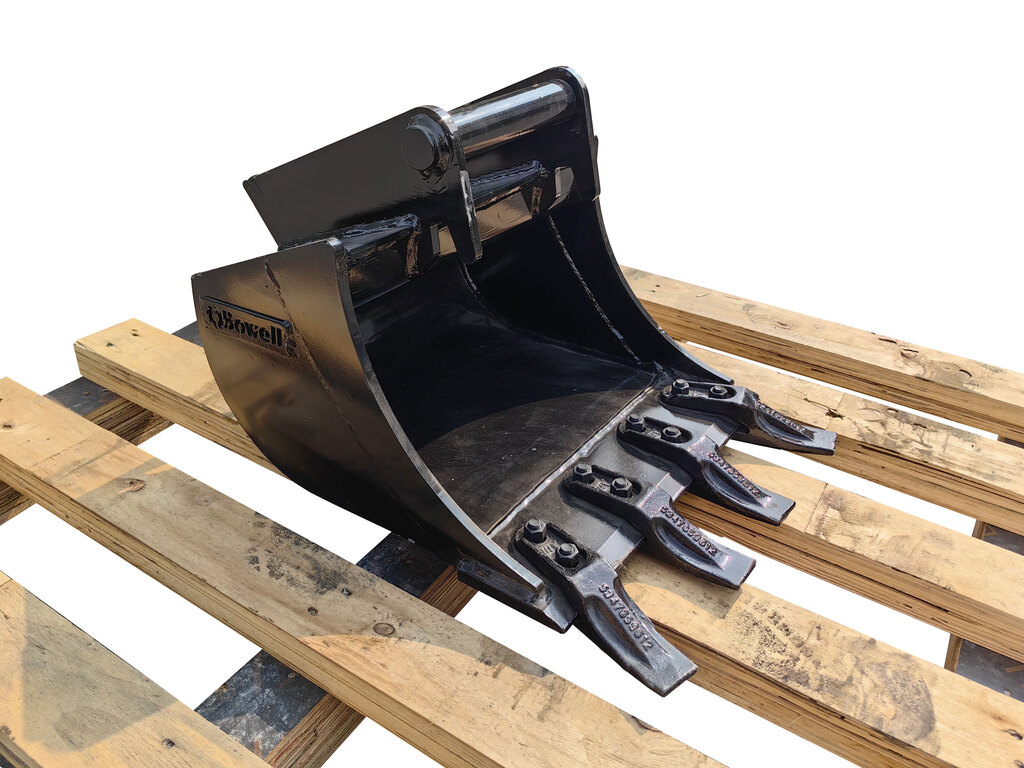

This high-quality backhoe bucket (also known as an excavator bucket or excavator shovel) with either MS01 or MS03 attachment has been specially developed for efficient digging and excavation work. Thanks to its robust design and versatile attachment, it is the ideal choice for professional applications in construction, gardening, landscaping and civil engineering.
Product features
✅ Robust material: Made from durable S355J2+N and Hardox 400 steel for maximum tool life.
✅ Side cutting edges: Provide additional protection and are made from up to 2 x 6mm thick steel.
✅ Cutting edge strip: High-quality cutting edge made from Hardox 400 for precise work.
✅ High-quality paint finish: Protection against corrosion thanks to powder coating.
✅ Easy to transport: Integrated transport hooks make handling easier.
✅ Reliability: 1-year guarantee on the weld seams - for maximum safety.
Perfect for construction and excavation work
With Bowell backhoe buckets and our other tools for mini excavators such as cable buckets, excavator buckets, screening buckets or ripper teeth, you are investing in durable tools that will make your work processes more efficient.
| Technical Data Bowell backhoe bucket with teeth for MS-01 and MS-03 compatible mini excavators | |||||||
| DATA | MS-01 30cm | MS-01 40cm | MS-01 60cm | MS-03 30cm | MS-03 40cm | MS-03 60cm | MS-03 90cm |
| Width cm | 30 | 40 | 60 | 30 | 40 | 60 | 90 |
|---|---|---|---|---|---|---|---|
| Length cm | 44 | 44 | 44 | 60 | 60 | 60 | 60 |
| Height cm | 23 | 23 | 23 | 34 | 34 | 34 | 34 |
| Weight kg | 38 | 44 | 58 | 60 | 70 | 88 | 116 |
| Volume L | 31 | 42 | 63 | 62 | 82 | 124 | 186 |
| No. of bolted teeth | 3 | 4 | 4 | 3 | 4 | 4 | 6 |
| Cutting edge WxDxH mm | 320x110x12 | 420x110x12 | 620x110x12 | 320x120x15 | 420x120x15 | 620x120x15 | 920x120x15 |
| Material stgrength side wall mm | 6 | 6 | 6 | 6 + 6 | 6 + 6 | 6 + 6 | 6 + 6 |
| Material teeth / cutting edge | Hardox 400 | ||||||
| Material bucket | S355J2+N | ||||||
| Transport hook | YES | ||||||
| Water drain holes | YES | ||||||
