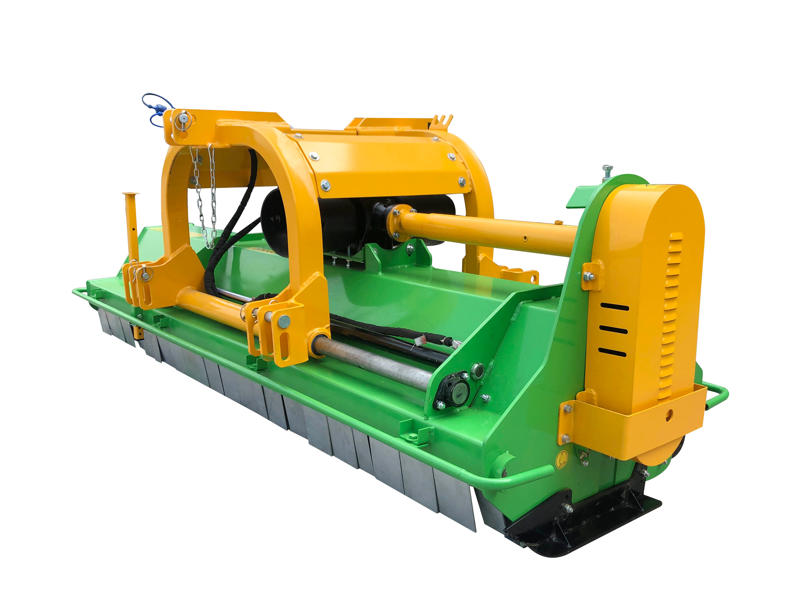

BCX-Series

BCX-Series

spare parts for Bowell BCX-Series
You want to order parts from the diagram that are not listed below ? Just send an email to info@bowell-tractor.com and we will help you.


Please click to enlarge !



1 - front safety bar for BCX240 39 - protection plate
1 - front safety bar for BCX260 40 - MXZ left roller bearing bracket
5 - protection plate,120mm width 180mm length 41 - spherical ball bearing 2207
5 - protection plate,50mm width 180mm length 42 - circlip for hole Φ72
5 - protection plate,35mm width 180mm length 43 - MXZpro 240 roller
10 - counter knife 43 - MXZpro 260 roller
14 - rotor bearing seat 45 - belt tension adjustment plate
15 - spherical ball bearing 2309 46 - oil seal 45x85x10
16 - oil seal 55x100x10 47 - circlip for hole Φ85
18 - BCX240 rotor 48 - deep groove ball bearing 6209
18 - BCX260 rotor 49 - shaft tube
22 - circlip for hole Φ100 50 - gasket
23 - oil seal 45x70x12 51 - shaft
24 - support leg 52 - PTO cover
26 - slide bar bracket, > # 910000 53 - gear box
27 - circlip for hole Φ60 55 - middle tube
28 - nylon bushing 60 - rear hitch
29 - BCX 3 point hitch front part 70 - gear box base plate
30 - front track 72 - upper hitch pin
32 - plate 74 - BCS lower hitch pin
33 - skid L+R 75 - middle plate
34 - MXZpro lower pulley 77 - round nut M25x1.5
35 - MXZpro upper pulley 78 - cylinder
36 - belt BX 17x1295 83 - oil pipe, 2000mm
37 - power lock 45x80 86 - oil seal 55x100x10
38 - belt cover

17x1295 drive belt
17x1295 drive belt
13,85 EUR
incl. 19% tax excl. Shipping costs
3-point hitch linkage
3-point hitch linkage
355,00 EUR
incl. 19% tax excl. Shipping costs
5 Stk. 1200gr flail hammer - BCRI/BCRS/BCRX/EFGCpro/EFGCHpro/EFME/EFMEHpro Series 2026 and after
5 Stk. 1200gr flail hammer - BCRI/BCRS/BCRX/EFGCpro/EFGCHpro/EFME/EFMEHpro Series 2026 and after
47,90 EUR
incl. 19% tax excl. Shipping costs
ball bearing
ball bearing
9,90 EUR
incl. 19% tax excl. Shipping costs
bearing for rotor shaft
bearing for rotor shaft
18,90 EUR
incl. 19% tax excl. Shipping costs
belt cover
68,00 EUR
incl. 19% tax excl. Shipping costs
belt tension adjustment plate
21,65 EUR
incl. 19% tax excl. Shipping costs
circlip 100mm
circlip 100mm
6,20 EUR
incl. 19% tax excl. Shipping costs
circlip 72mm
circlip 72mm
2,85 EUR
incl. 19% tax excl. Shipping costs
circlip for hole 60mm
circlip for hole 60mm
2,70 EUR
incl. 19% tax excl. Shipping costs
circlip for hole Φ85
3,80 EUR
incl. 19% tax excl. Shipping costs
deep groove ball bearing 6209
deep groove ball bearing 6209
15,90 EUR
incl. 19% tax excl. Shipping costs
drive shaft
82,00 EUR
incl. 19% tax excl. Shipping costs
front safety bar for BCX240
79,00 EUR
incl. 19% tax excl. Shipping costs
front safety bar for BCX260
109,00 EUR
incl. 19% tax excl. Shipping costs
gasket for upper drive shaft
gasket for upper drive shaft
3,50 EUR
incl. 19% tax excl. Shipping costs
gear box
gear box
485,00 EUR
incl. 19% tax excl. Shipping costs
gear box base
gear box base
36,40 EUR
incl. 19% tax excl. Shipping costs
hydraulic cylinder - side shift
hydraulic cylinder - side shift
155,00 EUR
incl. 19% tax excl. Shipping costs
lower hitch pin
lower hitch pin
11,00 EUR
incl. 19% tax excl. Shipping costs
middle plate 3-point-hitch
59,00 EUR
incl. 19% tax excl. Shipping costs
middle tube 3-point-hitch
48,00 EUR
incl. 19% tax excl. Shipping costs
mower counter knife
mower counter knife
14,75 EUR
incl. 19% tax excl. Shipping costs
MXZpro lower pulley
MXZpro lower pulley
57,00 EUR
incl. 19% tax excl. Shipping costs
MXZpro upper pulley
69,00 EUR
incl. 19% tax excl. Shipping costs
nylon bushing
7,20 EUR
incl. 19% tax excl. Shipping costs
oil pipe, 2000mm
65,00 EUR
incl. 19% tax excl. Shipping costs

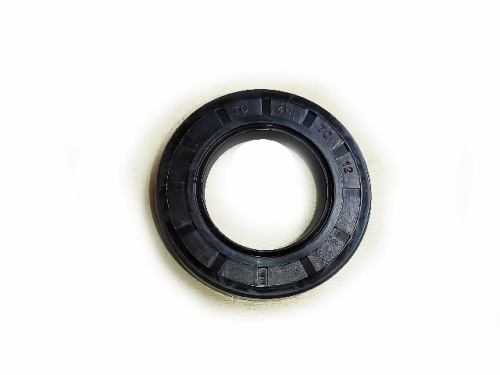

oil seal 45x70x12
oil seal 45x70x12
4,95 EUR
incl. 19% tax excl. Shipping costs
plate
9,35 EUR
incl. 19% tax excl. Shipping costs
power lock 45x80mm
power lock 45x80mm
19,90 EUR
incl. 19% tax excl. Shipping costs
PTO safety cover
PTO safety cover
26,50 EUR
incl. 19% tax excl. Shipping costs
rear hitch
388,00 EUR
incl. 19% tax excl. Shipping costs
1 to 32 (from a total of 50)
